UV高效光解净化设备
    低温等离子有机废气净化器

    1 产品介绍
    1 Product Introduction
            CZHN一型系列等离子有机废气净化器采用了独特的吸附一分解一碳化***新工艺技术设计,采用标准模块设计等优点,是一种干法处理有机废气的净化设备。它改变了使用活
    性碳材料的工艺技术,无需再生处理原料,无需专人负责不产生二次污染,更换及维护保养方便(可在设备正常运行情况下更换维护操作)。
          CZHN型系列离子有机废气净化器产品,无需增大抽风设备,风阻小、安装简便、可根据窖户现场环境要求分组制造,方便运输及安装、设备结构紧凑、投资低、操作方便。产品采用标准型材料制造,或采用全不锈钢材料制造处理风量有50T60000m3/h以上是目前处理工业有机废气污染的******设备。
            CZHN series I plasma organic waste gas purifier adopts the latest technology standard module design of adsorption,decomposition,carbonation. It changed the technology of using activated carbon materials, no need to regenerate raw materials, no special person should be appointed, no secondary pollution, easy to replace and maintain (can be replaced under the normal operation of the equipment maintenance operation).
            CZHN series---- ion-organic waste gas purifier products, no need to increase the exhaust equipment, small wind resistance, easy to install, and it could be manufactured in divided groups according to the customer's site environment requirements . Convenient transportation and installation, compact equipment structure, low investment improved the convenience of the equipment. The products are made of standard materials or all stainless steel materials, the air volume is 50T60000m3/h
    2 净化机理
    Purification Mechanism
            采用脉冲高压调频等离子体电源和齿板放电装置,使其产生高强度、高浓度、高电能的活性自由基,在毫秒级的时间内瞬间对有害废气分子进行氧化还原反应,将废气中的大部分污染降解成二氧化碳和水及易处理的物质。
            利用催化氧化剂的强氧化性和高吸附性,持续地对等离子体未处理尽的污染物和生成的物质进行催化氧化反应,使有害气经多级净化后***终达标排放标准。
            新颖的结构设计将低温等离子体的发生装置和催化氧化装置有机地结合在同一净化设备内,******限度地发挥了复合净化的效能,使之满足占地小,重量轻、能耗少、效率高地设计要求。
            The pulsed high-voltage frequency-modulated plasma power supply and the tooth plate discharge device are used to generate the active free radical with high intensity, high concentration and high energy, and conduct the REDOX reaction to the harmful waste gas molecules instantaneously within the time of millisecond, and degrade most pollution in the waste gas into carbon dioxide, water and easily processed substances.
           The strong oxidization and high absorb ability of the catalytic oxidant are used to continuously carry out catalytic oxidation reaction on the unprocessed pollutants and the generated substances of the plasma, so that the harmful waste gas can finally reach the standard after multistage purification.
           The novel structure design organically combines the low-temperature plasma generator and catalytic oxidation unit in the same purification equipment, giving full play to the efficiency of compound purification, making it meet the design requirements of small occupation, light weight, low energy consumption and high efficiency.
    3 功能特点
    3  Functions and Features
    ●具有一次性净化效率高,能同时净化多种污染物
    ●防火性能采用开关、电源、电路三重自动保护
    ●设备体积小、结构紧凑、工艺成熟
    ●设备投资少、运行成本低
    ●安全稳定、维护方便、使用寿命长
    ●净化效率高、无二次污染
    1.With a high efficiency of one-time purification, can simultaneously purify a variety of pollutants.
    2.Fire performance adopts switch, power supply, circuit triple automatic protection.
    3.The equipment is small in size, compact in structure and mature in process.
    4. Low equipment investment, low operating costs.
    5. Safe and stable, easy maintenance, available working time is long .
    6. High efficiency, no secondary.
    4 安装工艺流程图
    4  Installation Guide Chart

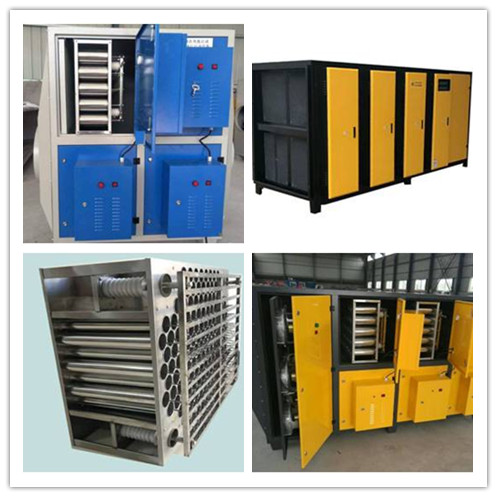

         茗宏环保公司使用圆筒峰巢电场,加长多点指针放点技术并把它成功运用到等离子净化器里,圆筒蜂
    巢电场的低温等离子净化器的净化效率大大高于板线电场净化器。在处理风量相同的前提下,茗宏环保圆通蜂巢电油烟净化器的净化效率是板线设备三倍体积才能达到的。
            Minghong Environmental Equipment Co., Ltd uses the cylindrical peak and nest electric field, lengthened multi-purpose pointer placement technology and successfully applied it into the plasma purifier. The efficiency of the low-temperature plasma purifier of the cylindrical honeycomb electric field is much higher than that of the plate and line electric field purifier.
            On the premise of the same air volume, the purification efficiency of Minghong environmental-friendly cylindrical honeycomb electric lampblack purifier can only be achieved by triploid product of plate and wire equipment.
