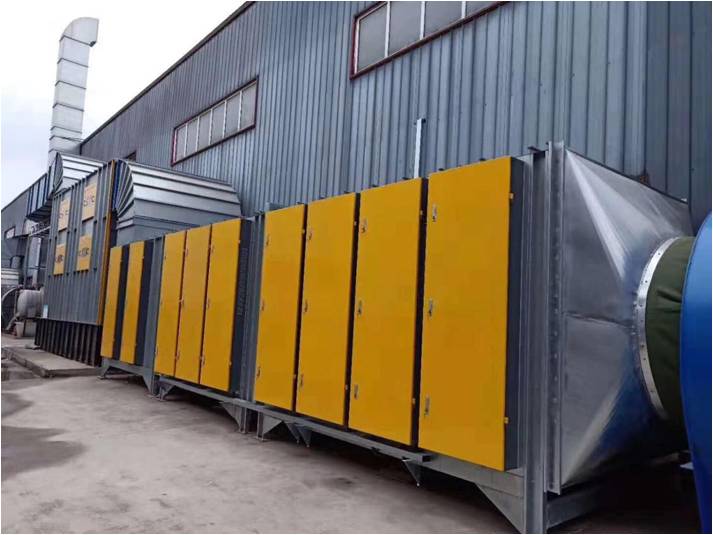

UV高效光解净化设备
    UV高效光解净化设备


    1  产品信息
    1  Product Information:
    单台处理能力 Product capability :3000 m³ / h-8000 m³ / h
    额定功率范围 Rated power: 1.2kw-38.4kw / 220v-380v
    额定风阻 Rated wind resistance: <200pa

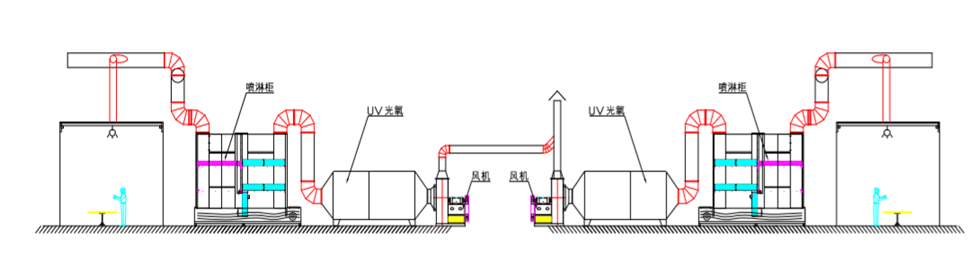

    2  工艺流程图
    2 Working Process Chart:

    3 环保指标设计依据及标准
    3 Environmental protection index design basis standard:
    3.1.中华人民共和国换进给保护法 Environmental Protection Law of the People's Republic of China
    3.2. 大气污染综合排放标准 Comprehensive emission standards for air pollutants (GB16297-1996)
    3.3. 恶臭污染物排放标准 Emission Standard of Odor Pollutants (GB1455-1993)
    3.4. 环境空气质量标准 Ambient air quality standard(GB3905-1996)
    3.5. 空气质量恶臭的测定
        Determination of malodor in air quality, three-pointed comparison method(GB/T14675-93)
    3.6. 餐饮业油烟排放标准 Emission Standard of Oil Fume in the Catering Industry (GBJ8483-2001)
    3.7. 工厂企业厂界噪声标准及其测量方法
         Factory and enterprise noise standards and measurement methods (GB12348-12349-90)
    3.8. 工作场所有害因素职业接触限值
         Occupational exposure limit for harmful factors in the workplace (GBZ2-2002)
    3.9. 工业企业设计卫生标准 Design Sanitary Standards for Industrial Enterprises (GBZ1-2002)
    3.10. 建设项目环境保护管理条例 Regulations on Environmental Protection Management of Construction Projects (Order of the State Council of the People's Republic of China, Article 253, 1998)

    4  净化设备操作技术要领
    4  Key to Purification Equipment Technology:
            启动废气净化系统时先启动设备配套排风机,控制废气浓度到防爆安全值,然后接通净化设备电源,启动UV高能紫外净化装置和二氧化钛催化辅助,然后根据废气浓度和设备处理效果,调整设备功率,以达到低能耗情况下得以实现废气处理。废气处理结束时,先关闭设备电源,再关闭配套风机,以防止一些可燃性气体达到******极限而导致危险。
            When starting the exhaust gas purification system, first start the equipment supporting the exhaust fan to control the exhaust gas concentration to an explosion-proof safe value, then turn on the power of the purification equipment, start the UV high-energy ultraviolet purification device and the titanium dioxide catalytic aid, and then adjust the equipment power according to the exhaust gas concentration and equipment treatment effect In order to achieve low energy consumption, waste gas treatment can be achieved. At the end of the exhaust gas treatment, turn off the power of the equipment, then turn off the power of the equipment, and then turn off the supporting fans to prevent some flammable gases from reaching the limit and causing explosion and other danger.
    5  UV高效光解净化设备使用条件
    5  Instructions for use of UV Efficient Photolysis Purification Equipment:
    5.1. 使用环境温度:-30%-70°
    5.2. 海拔高度:不高于4000米
    5.3. 周相对湿度,不大于98%(温度25℃C时)
    5.4. 电压AC220V±22V  C380V±38V,50Hz
    5.1. Working environment temperature: minus 30 ℃ -70 ℃
    5.2. Altitude: less than 4000 meters
    5.3. Relative humidity around, not more than 98% (temperature is 25 ℃)
    5.4. Voltage: AC220V ± 22V, AC380V ± 38V, 50HZ
    6  适用领域
    6  Scope of  Application in Industires:
    物质名称               恶臭气体主要来源

    硫化氢  牛皮纸浆、炼油、炼焦、石化、煤气、粪便处理、二硫化碳的生产或加工
    硫醇类  牛皮纸浆、炼油、煤气、制药、农药、合成树脂、合成纤维、橡胶
    硫醚类  中皮纸浆、炼油、农药、垃圾处理、生活污水下水道
    氨          氮肥、硝酸、炼油、粪便处理、肉类加工
    胺类     水产加工、畜产加工、皮革、骨胶
    吲哚类  粪便处理、生活污水处理、炼焦、肉类腐烂、屠宰牲畜
    硝基     燃料、炸药
    烃类     炼油、炼焦、石油化工、电石、化肥、内燃机排气、油漆、溶剂、油墨印刷
    醛类     炼油、石油化工医药、内燃机排气、垃圾处理、祷造
    6  适用领域
    6  Scope of  Application in Industires:
    Substance Name           Gas main source
    Hydrogen sulfide            cowhide pulp, oil refining, coking, petrochemical, gas, faeces treatment,
                                             carbon disulfide production or processing
    Mercaptan                       cowhide pulp, oil refining, gas, pharmaceutical, pesticide, synthetic resin,
                                            synthetic fiber, rubber
    Sulfur                              ether pulp, oil refining, pesticides, garbage treatment, sewage
    Ammonia                        nitrogen fertilizer, nitric acid, oil refining, manure treatment, meat processing
    Amine                             aquatic processing, livestock processing, leather, bone glue
    Indoles                            excrement treatment, domestic sewage treatment, coking, meat decomposition,
                                            slaughter of livestock
    Nitro melt                       explosive
    Hydrocarbon                  refining, coking, petrochemical, calcium carbide, chemical fertilizer,
                                           internal combustion engine exhaust, paint, solvent, ink printing
    Aldehydes                      refining, petrochemical, medicine, internal combustion engine exhaust,
                                           waste disposal, prayer
